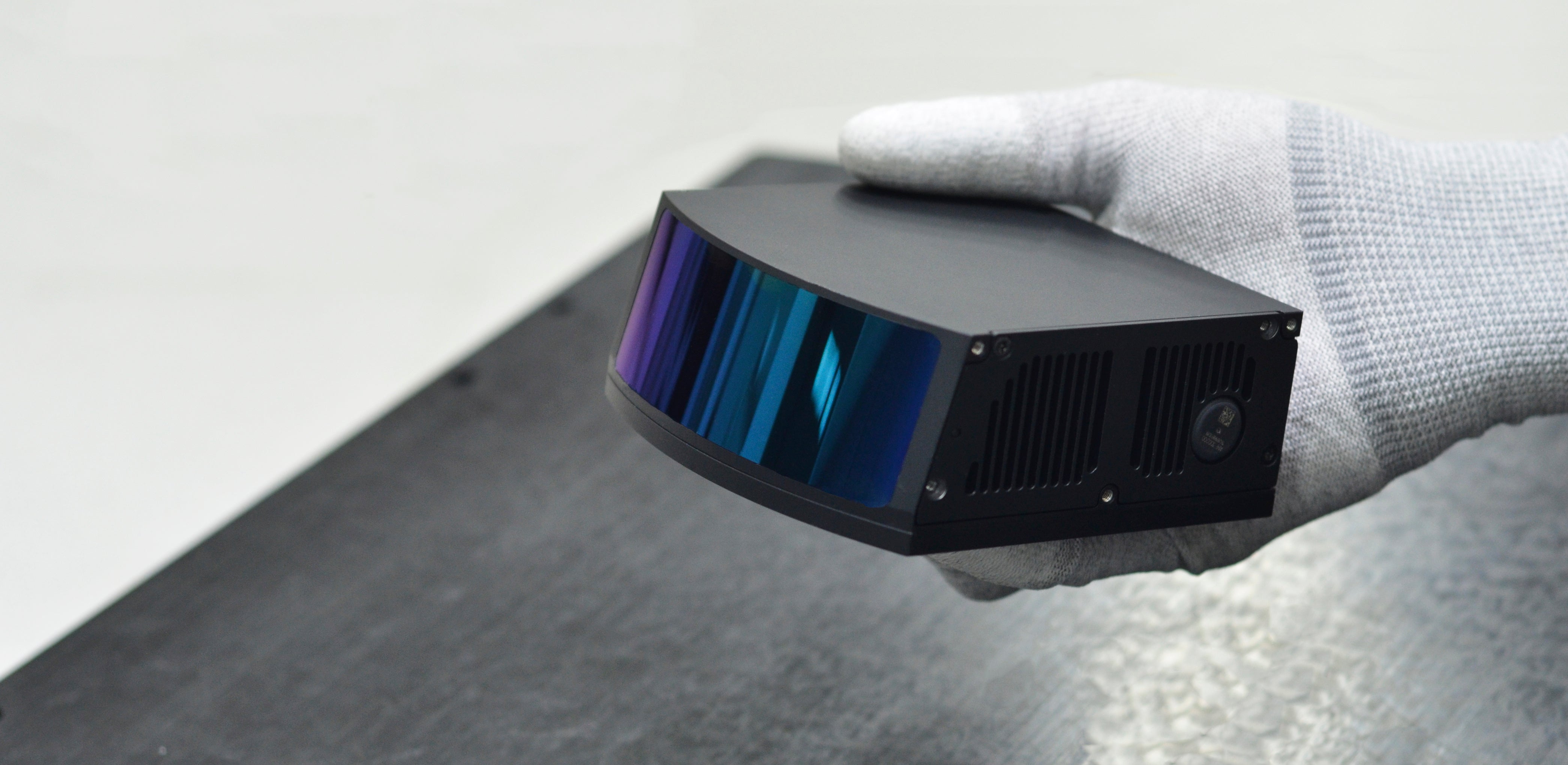

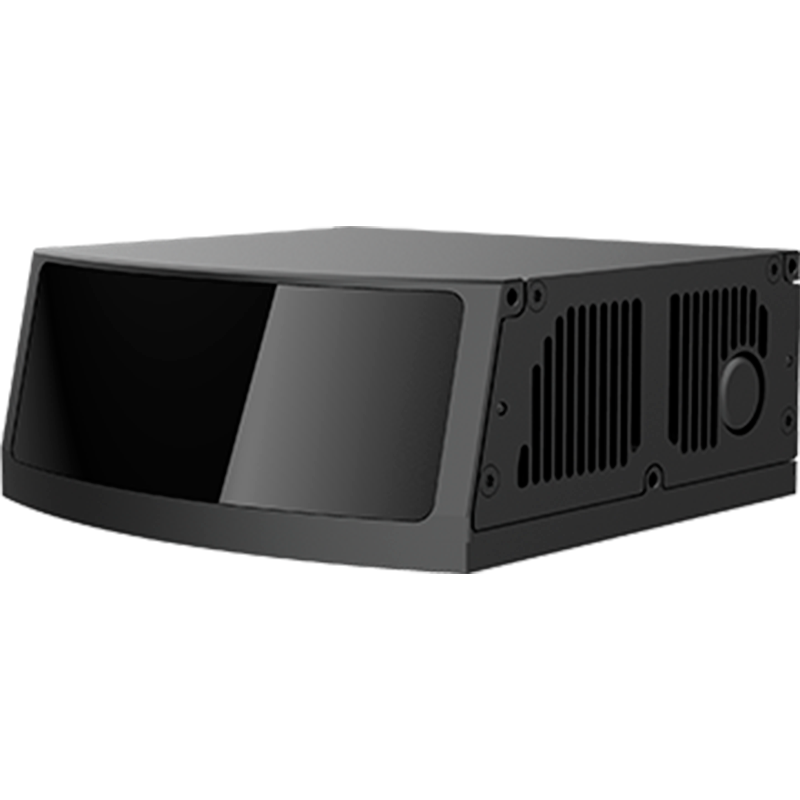

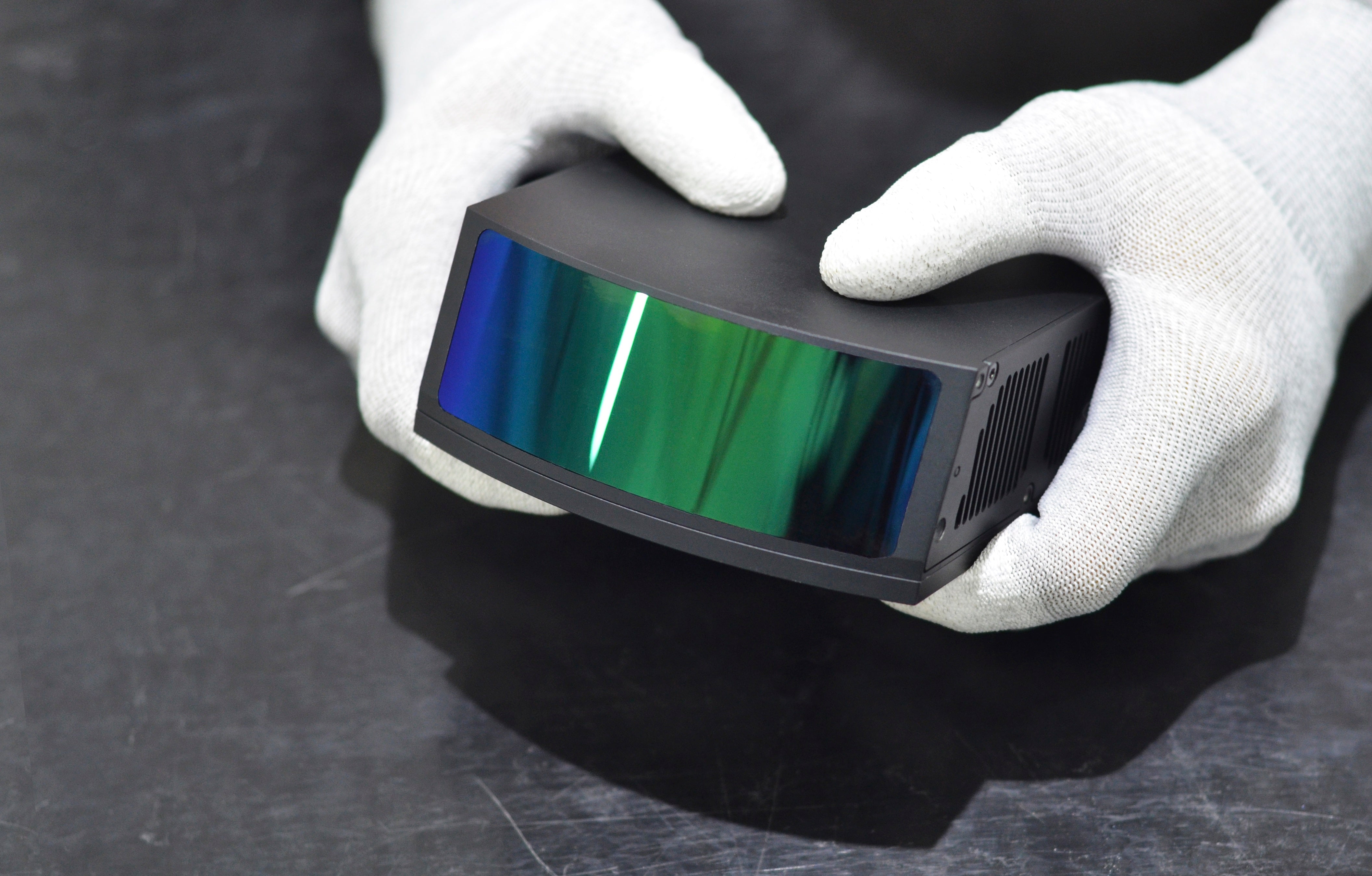

M1 Automotive-Grade MEMs

M1 is an automotive-grade solid-state LIDAR, that RoboSense specially designed for massive production vehicles. It provides highly reliable 3D environment perception for vehicles to deliver safe driving.

Based on RoboSense's revolutionary patented MEMS technology, M1 has a much-simplified structure and way fewer demands on components. This new revolutionary solid-state LIDAR system excels with a lot of advantages including high reliability, low cost, easy for massive production, and easy for integration into the vehicle body, etc.

Spec Name
Spec Value
Vendor RoboSense
Wavelength 905nm
Laserclass Class1
Accuracy ±5cm (typical)
Measurement Range 200m
Blind spot ≤1m
VFOV -12.5°~+12.5°
Angular Resolution(V) 0.2° (average) HFOV -60.0°~+60.0°
Angular Resolution(H) 0.2° (average) FrameRate 10Hz
Datarate 750000pts/s (single return); 1,500,000pts/s (dual return)
Interface 1000Mbps Ethernet
UDP Packet Data Spatial Coordinates,Intensity,Timestamp,etc.
Operating Voltage 9-36VDC
Power consumption ~18w
Protection Level IP67
Operating temperature -40°C~+85°C
Dimension 108(L)x110(W)x45(H)mm (without connector)
Weight ~730g (without cabling)


Product Brochure

M1 Brochure EN
